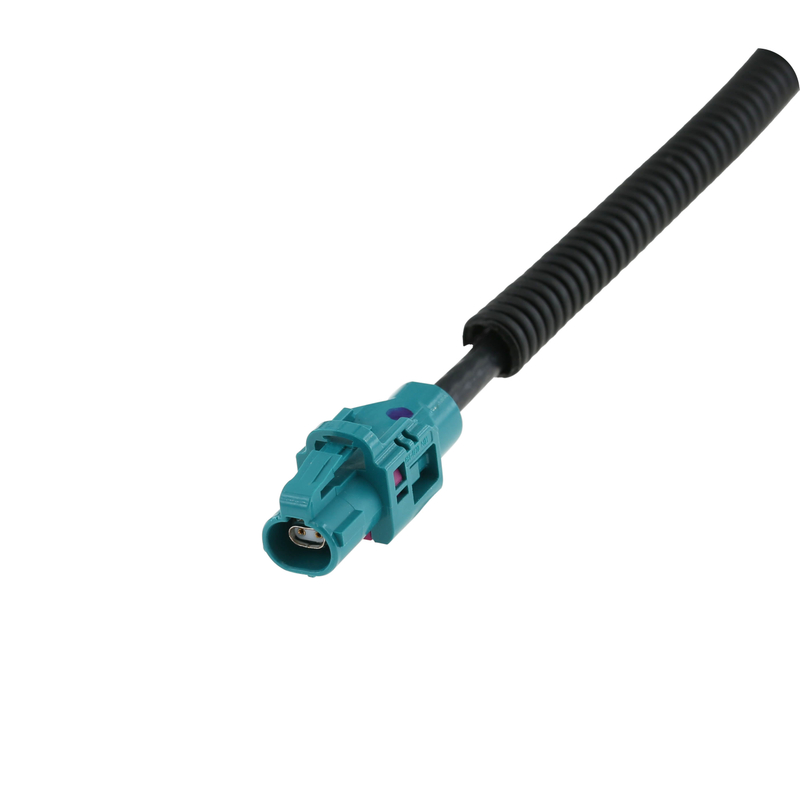

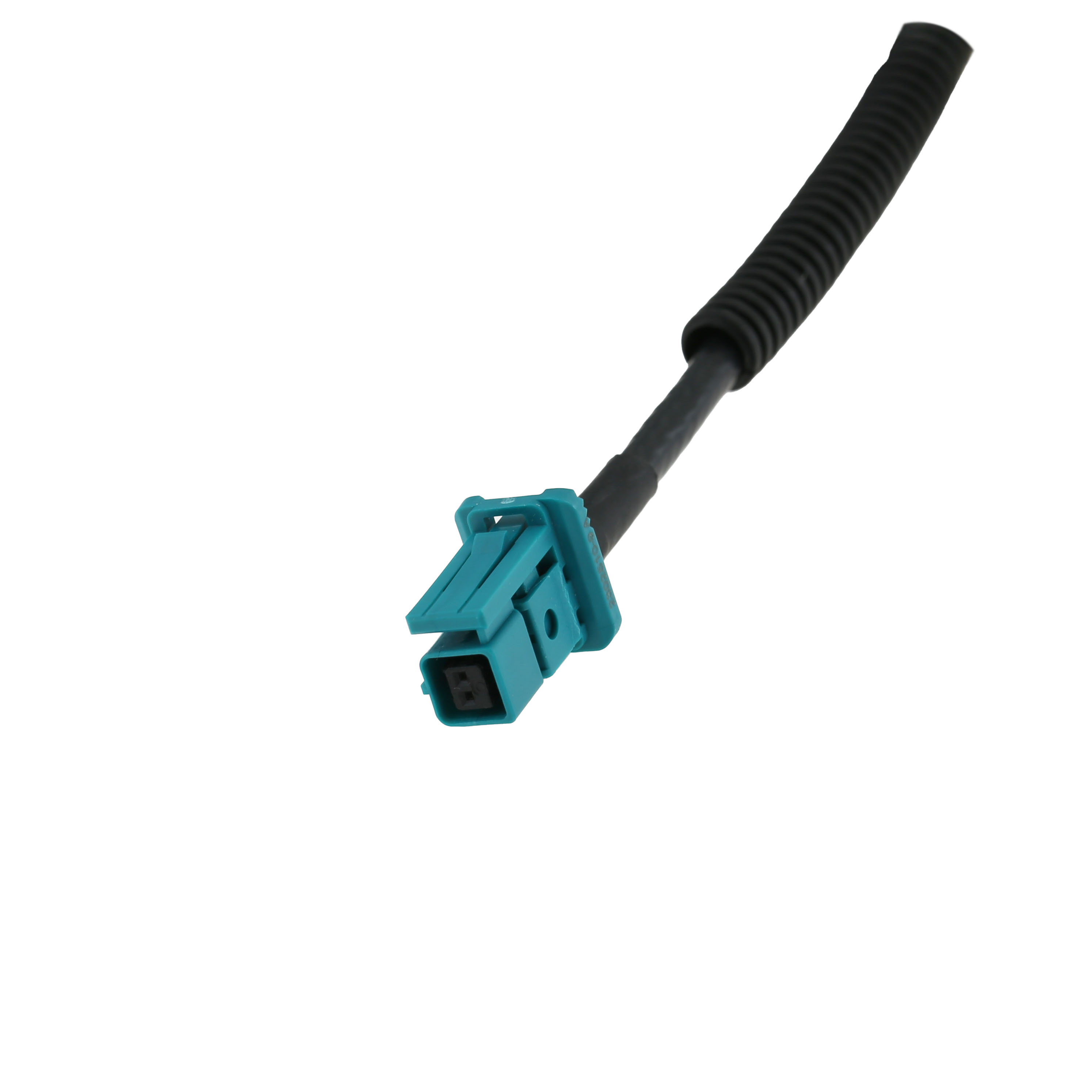

H-MTD To MATEnet Ethernet Cable Assemblies

Rosenberger H-MTD is a differential connector system for high-speed data transmission of up to 20 GHz or 56 Gbps, contained in a compact yet robust automotive grade housing.
Apax from ensuring high-bitrate data transmission and savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to suppon a wide range of Ethernet applications and industry protocols.
The application field of the Rosenberger H-MTD” is countless as it can be used with a variety of different cables including Shielded Twisted Pair, Unshielded Twisted Pair and new High-Performance cables. With H-MTD” the customer can count on an interface that accommodates future vehicle networks, applications and protocols.

Model:
ECA4006
Gender:
Female
Orientation:
Straight
Termination Body:
Crimping
Termination Contact:
Crimping

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Range

Cable and PCB connectors, modular housings, cable assemblies, waterproof types:

Rosenberger H- MTD single

Rosenberger H- MTD double

Rosenberger H- MTD quad

Rosenberger H- MTD six

Rosenberger H- MTD +6 Power pins

Rosenberger H-MTD e

Applications

Navigation

Infotainment

Internet & mobile communication

"WiGig" (Wireless Gigabit)

Camera systems 4k and higher

Driver assistance systems

Autonomous driving

High resolution displays

Rear seat entertainment

Open to all protocol (e.g)

~Ethernet

~100 Mbps

~ 1 Gbps

~Multi-Gigabit

~LVDS

~APIX 3

~PCle Gen3

~FPD4

Suitable Cable

Sheilded Cable :GG 2Speed 251，Leoni Dacar 647-4

Unsheilded Cable: GG 2Speed 132，Leoni Dacar 676

Electric Data
Impedance	100 ohms
Frequency range depending on cable type	0.01 GHz to 20 GHz
Return loss	≥ 30 dB, 0.01 GHz to 3 GHz ≥25 dB, 3 GHz to 6 GHz ≥20 dB, 6 GHz to 10 GHz ≥15 dB, 10 GHz to 15 GHz ≥12 dB, 15 GHz to 20 GHz
Near end crosstalk	≥60 dB, 0.01 GHz to 7.5 GHz ≥45 dB, 7.5 GHz to 20 GHz
Far end crosstalk	≥60 dB, 0.01 GHz to 7.5 GHz ≥45 dB, 7.5 GHz to 20 GHz
Insulation resistance	≥ 100 MΩ
Signal contact resistance	≤ 10 MΩ
Outer contact resistance	≤ 7.5 MΩ
Test voltage	250 V DC
Working voltage	60 V DC
Contact current depending on cable	<1.5 A DC @ 85 °C ambient temperature
Mechanical Data
Mating cycles (standard，non waterproof)	≥ 25
Mating cycles ( waterproof)	≥ 5
Engagement force	≤ 45 N*
Engagement force waterproof	≤ 45 N*
Retention force latch	≥ 110 N
Retention force primary lock	≥ 80 N
Retention force secondary lock	≥ 120 N
Polarization feature effectiveness	≥ 150 N*
* depends on connector

H-MTD Connector	Sheilded Connectors
E6S10A-40MT5-y	Single Straight Plug
E6S10F-40MT5-y	Six Straight Plug
E6S10A-1xxz5-y	Single Straight Plug
E6S10C-1xxz5-y	Single Straight Plug
E6K10A-1xxz5-y	Single Straight Jack
E6K10B-1xxz5-y	Double Straight Jack
E6K10D-1xxZ5-y	Quad Straight Jack
E6K10F-1xxz5-y	Six Straight Jack
E6S14A-40MT5-y	Single Straight Plug - Waterproof
E6S14B-40MT5-y	Double Straight Plug - Waterproof
E6S24A-40MT5-y	Single Right Angle Plug - Waterproof
E6S24B-40MT5-y	Double Right Angle Plug - Waterproof
E6S24D-40MT5-Y	Quad Right Angle Plug - Waterproof
E6S14E-1xxZ5-y	Single Straight Plug - Waterproof
E6K14A-1xxZ5-y	Single Straight Jack - Waterproof
E6K14B-1xxz5-y	Double Straight Jack - Waterproof
E6K14D-1xxZ5-y	Quad Straight Jack - Waterproof
99S1HC-40MT5-y	Single Straight Plug - 6 Power For Pcb
99S1HG-40MT5-y	Double Straight Plug - 6 Power For Pcb
99S2HC-40MT5-y	Single Right Angle Plug - 6 Power For Pcb
99S2HG-40MT5-y	Double Right Angle Plug - 6 Power For Pcb
99K1HC-1xxZ5-y	Single Straight Jack - 6 Power For Pcb
99K1HG-1xxZ5-y	Double Straight Jack - 6 Power For Pcb
E6S20A-40MT5-Y	Single Right Angle Plug For Pcb
E6S22A-40MT5-y	Single Right Angle Plug For Pcb
E6S218-40MT5-y	Single Right Angle Plug For Pcb
E6S20B-40MT5-Y	Double Right Angle Plug For Pcb
E6S20D-40MT5-Y	Quad Right Angle Plug For Pcb
E6S20F-40MT5-Y	Six Right Angle Plug For Pcb
H-MTD e Connector	Unsheilded Connectors
E9K10A-1xxX5-y	Single Straight Jack
E9K10B-1xxX5-y	Double Straight Jack
E9K10D-1xxX5-y	Quad Straight Jack
E9K10F-1xxX5-y	Six Straight Jack
E9K14A-1xxX5-y	Single Straight Jack - Waterproof
E9K14B-1xxX5-y	Single Straight Jack - Waterproof
Precision adaptor with H-MTD housing
02K3E6-K00S5	H-Mtd Female To 2.92 Female Y-Adaptor
02S3E6-K00S5	H-Mtd Female To 2.92 Male Y-Adaptor
02K3E6-S00S5	H-Mtd Male To 2.92 Female Y-Adaptor
02S3E6-S00S5	H-Mtd Male To 2.92 Male Y-Adaptor
Precision adaptor without H-MTD housing
02K3E6-K01S5	H-Mtd Female To 2.92 Female Y-Adaptor
02S3E6-K01S5	H-Mtd Male To 2.92 Female Y-Adaptor
02K3E6-S01S5	H-Mtd Female To 2.92 Male Y-Adaptor
02S3E6-S01S5	H-Mtd Male To 2.92 Male Y-Adaptor

Cable Assemblies H-MTD	side A	side B
LCA-101-xxxx-y-y	E6K10A-1CA straight Jack	E6K10A-1CA straight Jack
LCA-102-xxxx-y-y	E6K10A-1CA straight Jack	E6S10A-1CA straight Plug
LCA-103-xxxx-y-y	E6S10A-1CA straight Plug	E6K10A-1CA straight Jack
LCA-104-xxxx-y-y	E6S10A-1CA straight Plug	E6S10A-1CA straight Plug
XXX: Length in mm,y-y: coding side A/B
