Precision Test Cable T26S

Quantity:
Inquire Add to Basket

Part No ZT26S

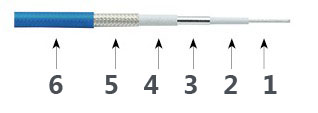

Cable Structure
No Material&Surface Finish
1 Conduct:
Silver plated cooper wire
2 Insulator: LD-PTFE
3 Inner braidinging:
Silver plated cooper ribbon
4 Interlayer LD-PTFE
5 Outer braidinging:  Silver plated cooper braiding
6 Jacket Jacket: PUR





Mechanism Characteristic
Dimension mm Inch
Conduct 1.02 0.04
Insulator 3.07 0.121
Inner braiding 3.27 0.129
Interlayer 3.47 0.137
Outer braiding 3.8 0.15
Jacket 5.2 0.205
Weight 0.065kg/m
Min.Bending Radius (Dynamic 52.0mm),(Static 25.0mm)
Cycle > 5000
Temperature Range -55℃~ +85℃
Electrical Performance
6GHz 18GHz 26.5GHz
VSWR Max SMA/3.5mm 1.15:1 1.25:1 1.30:1
N 1.15:1 1.25:1
TNC1.15:1 1.30:1
Impendence 50Ω
Velocity Propagation 76%
Shielding efficiency > 90 dB
Amplitude stability < ±0.03dB⑥26.5GHz
Bending phase stability < ±2.7° @26.5GHz
Attenuation(25℃)
Frequency(MHz) dB/100ft dB/100m
1000 10.7 35
3000 20.7 68
6000 28.7 94
10000 42.4 139
12000 45.1 148
18000 53.6 176
26500 68.6 225
Average power (25℃,sea level,only cable)
Frequency(GHz) Watts
1000 149
3000 85
6000 55
10000 41
12000 37
18000 29
26500 23
