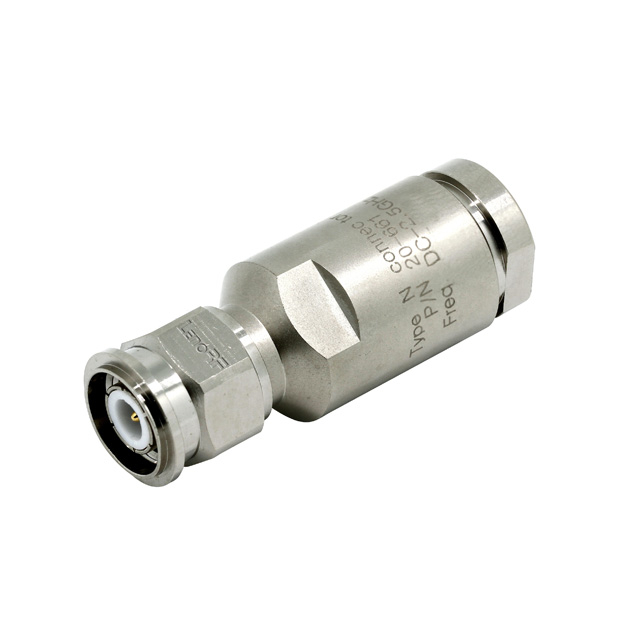

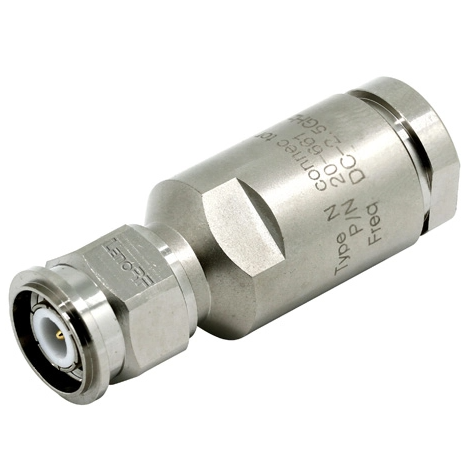

TNC Connector Plug Clamp Straight For LMR400 Cable

TNC (Threaded Neill Concelman) coaxial connectors have a 50 ohm impedance. It's a threaded, higher-performing variant of the more popular BNC connection. It's utilized for RF communications with a frequency range of up to 11 GHz. It's an excellent choice for dealing with microwave frequencies because of its structure, which includes threaded coupling that creates a stable connection. There are two types of TNC connectors: normal polarity and reverse polarity (RP-TNC).

  • 20-662

  • 67-5161-210-01

  • Male

  • Straight

  • Clamping

  • Crimping

  • LMR400

  • 67-5161-217-01.pdf

  • 67-5161-217-01.stp

Availability:
Quantity:
Inquire Add to Basket


Materials&Electroplating

Conduct

Brass/ Silver,Gold Plating

Insulator

 PTFE

Body

Brass / Chemical Nickel

Other Parts

Brass/ Nickel Plating

Electric Performance

Impedance

50 OHMS

Frequency Range

0-3GHz

VSWR

≤1.30

Rating Voltage

500V

Environmental


Temperature Rating

-65°C to +165°C

Corrosion (Salt Spray)

MIL-STD-202, Method 101, Condition B

Vibration

MIL-STD-202, Method 204, Condition D, 20 Gs

Shock

MIL-STD-202, Method 213, Condition I, 100 Gs

Thermal Shock

MIL-STD-202, Method 107. Cond. B, -65°C to +125°C

Moisture Resistance

MIL-STD-202, Method 106, Less Step 7B

Barometric Pressure (Altitude)

MIL-STD-202, Method 105, Condition C, 70k Ft.
