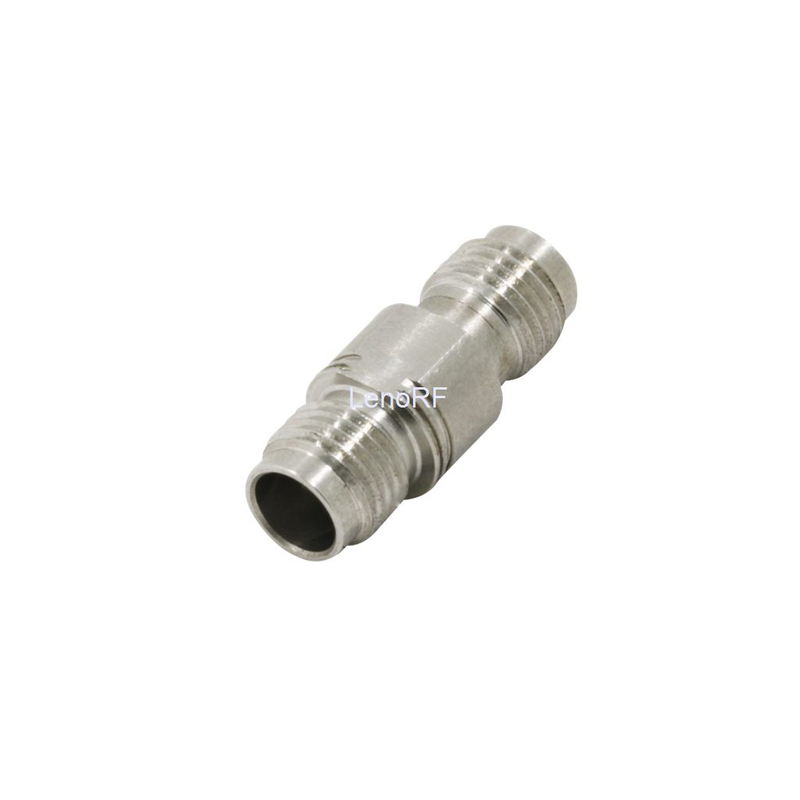

2.4mm Connector Jack To 2.92mm Connector Jack Adapter

The 2.4 mm connector is a screw-on precision connector with a 50 ohm impedance suitable for operation up to 50 GHz. Satellites, test and measurement equipment, and radars all require 2.4 mm connections, which are standardized according to IEC 61169-40. Mechanically, the connections are interchangeable with 1.85 mm connectors. They resemble SMA and 3.5 mm connections in appearance, but they require precise adapters to match with SMA, 3.5mm, and 2.92mm connectors. The outer conductor of 2.4 mm connections is thicker than that of typical SMA and 2.9 mm connectors, making them more durable.
